Re: Two 1962 Ford M151's

Post by rickf » February 5th, 2019, 10:42 am

If you were in the military just remember those times, Don't think, just do it. :lol:
1964 M151A1
1984 M1008
1967 M416
04/1952 M100
12/1952 M100- Departed
AN/TSQ-114A Trailblazer- Gone

M37
Corporal
Corporal
Posts: 45
Joined: September 5th, 2018, 11:41 pm

Re: Two 1962 Ford M151's

Post by M37 » March 24th, 2019, 8:00 pm

I'm a bit behind in posting pictures of the progress. I've been working on it pretty much every weekend. Here are a few pictures of taking the engine out. Also a few of the rotisserie fabrication finishing up.






Last edited by M37 on March 24th, 2019, 8:19 pm, edited 1 time in total.

rickf
General
General
Posts: 16148
Joined: November 26th, 2007, 1:28 pm
Location: Pemberton, NJ.

Re: Two 1962 Ford M151's

Post by rickf » March 24th, 2019, 8:19 pm

Is that an S cam for a rotisserie?
1964 M151A1
1984 M1008
1967 M416
04/1952 M100
12/1952 M100- Departed
AN/TSQ-114A Trailblazer- Gone

M37
Corporal
Corporal
Posts: 45
Joined: September 5th, 2018, 11:41 pm

Re: Two 1962 Ford M151's

Post by M37 » March 24th, 2019, 8:23 pm

rickf wrote:Is that an S cam for a rotisserie?

Why yes sir! An S-cam and a slack adjuster! It works really well to roll it to any angle. I can do it with a wrench or an impact. It's kind of fun just to roll it in circles.

M37
Corporal
Corporal
Posts: 45
Joined: September 5th, 2018, 11:41 pm

Re: Two 1962 Ford M151's

Post by M37 » March 24th, 2019, 8:28 pm





M37
Corporal
Corporal
Posts: 45
Joined: September 5th, 2018, 11:41 pm

Re: Two 1962 Ford M151's

Post by M37 » March 24th, 2019, 8:38 pm















M37
Corporal
Corporal
Posts: 45
Joined: September 5th, 2018, 11:41 pm

Re: Two 1962 Ford M151's

Post by M37 » March 24th, 2019, 8:53 pm

I will have to come back and add some text to the pictures. I am doing this from my cell phone, so it is a pain to do it all at the same time. Hopefully most of these pictures are self explanatory.

Joe

















































Hambone
Colonel
Colonel
Posts: 1599
Joined: October 1st, 2010, 12:19 am
Location: El Dorado, Arkansas

Re: Two 1962 Ford M151's

Post by Hambone » March 24th, 2019, 9:11 pm

Looks like you're making progress, nice to see the kids involved, keep the pics coming, we like pics.

M37
Corporal
Corporal
Posts: 45
Joined: September 5th, 2018, 11:41 pm

Re: Two 1962 Ford M151's

Post by M37 » March 24th, 2019, 9:34 pm

Hambone wrote:Looks like you're making progress, nice to see the kids involved, keep the pics coming, we like pics.

Thanks! I love having them out in the shop with me. It is their incentive to get their homework done, so they can be in the shop with dad. It is my therapy for long days at work.

Joe

M37
Corporal
Corporal
Posts: 45
Joined: September 5th, 2018, 11:41 pm

Re: Two 1962 Ford M151's

Post by M37 » June 1st, 2019, 2:08 am

I finally ordered and just received my floor panels and a few other parts from Guy. They are beautiful!

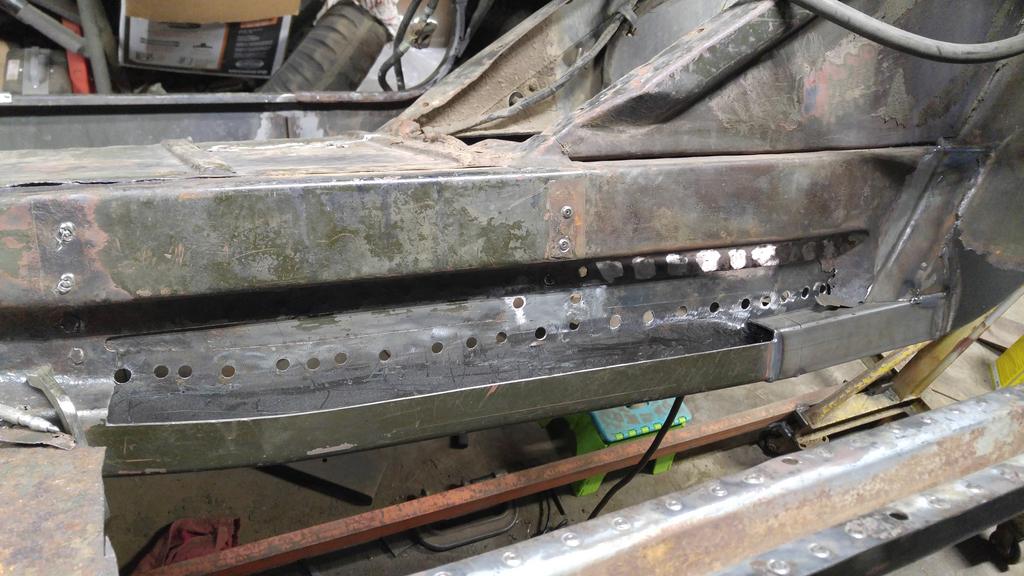

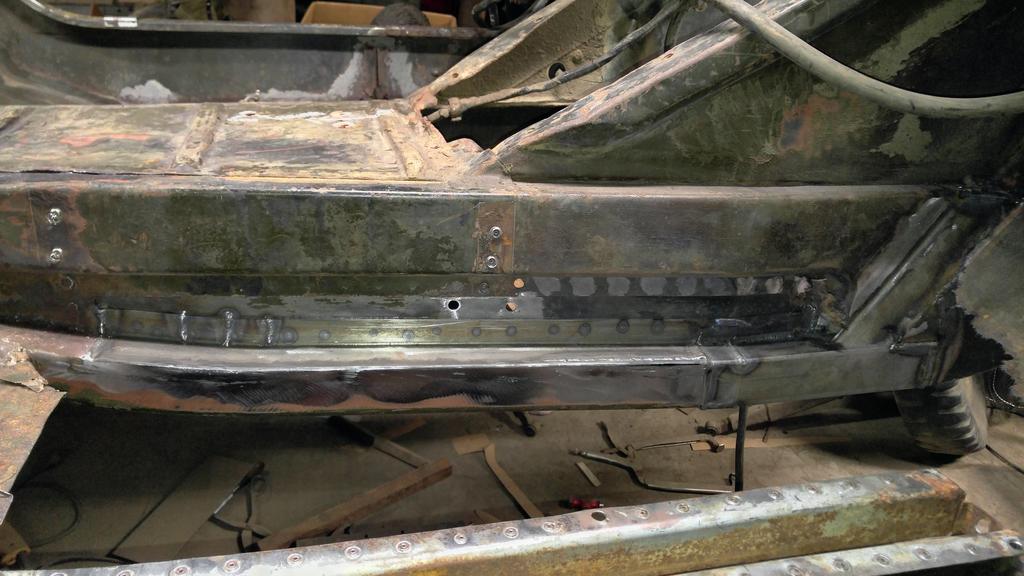

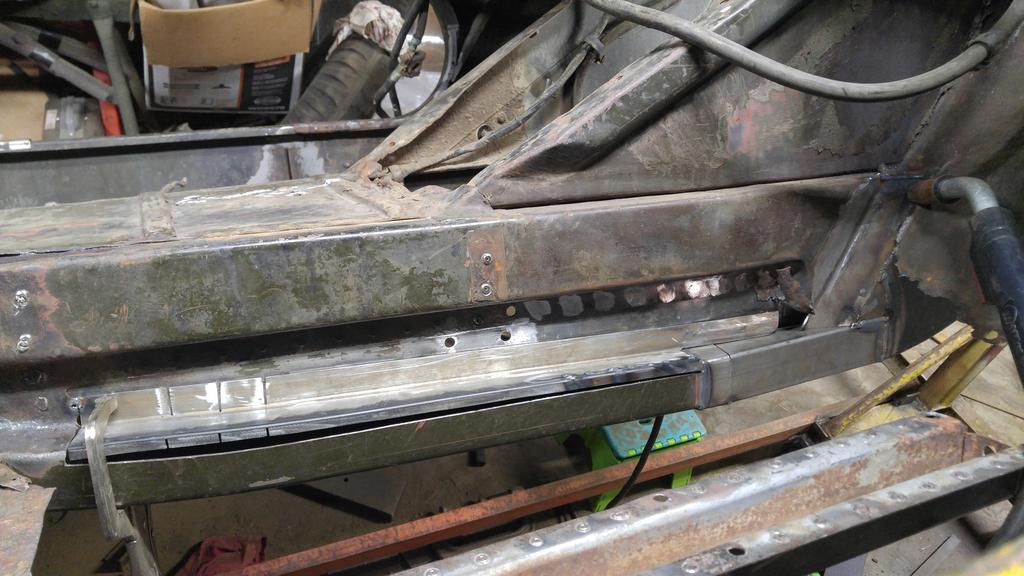

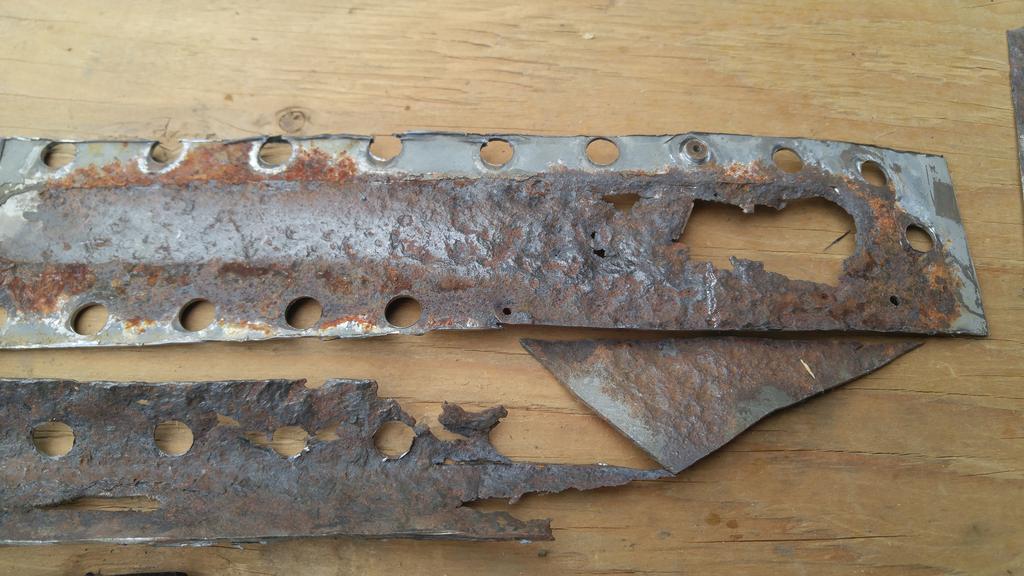

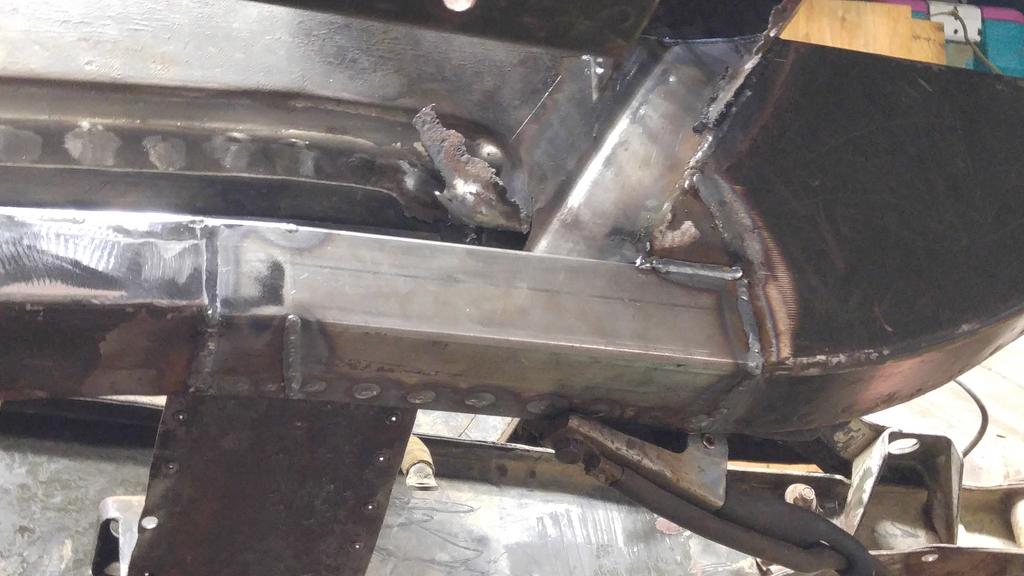

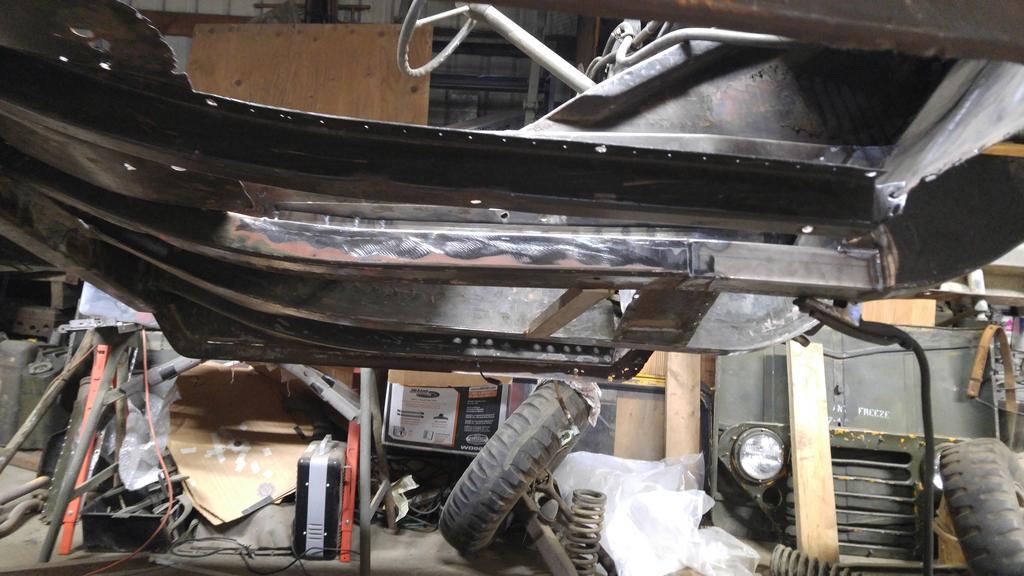

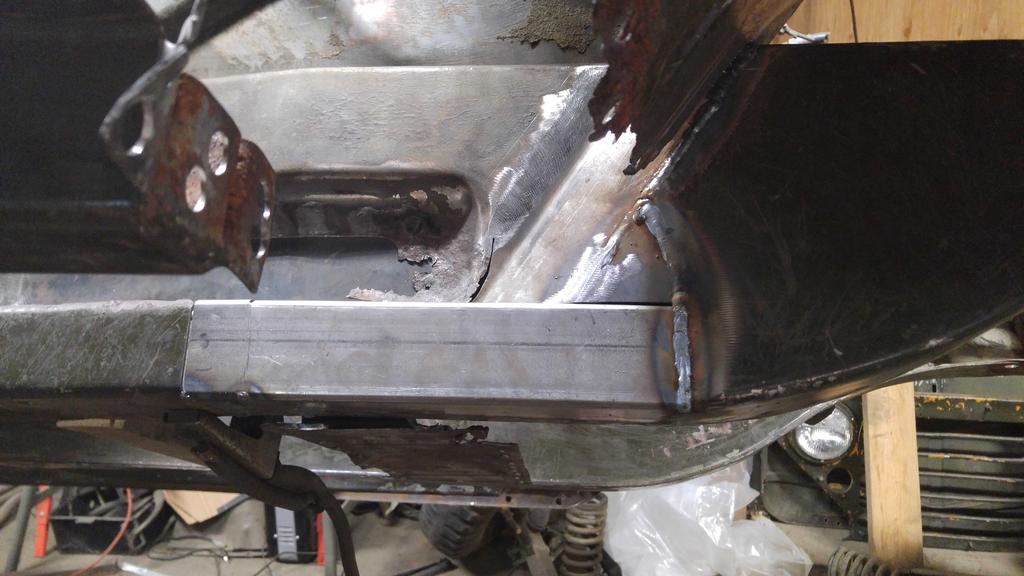

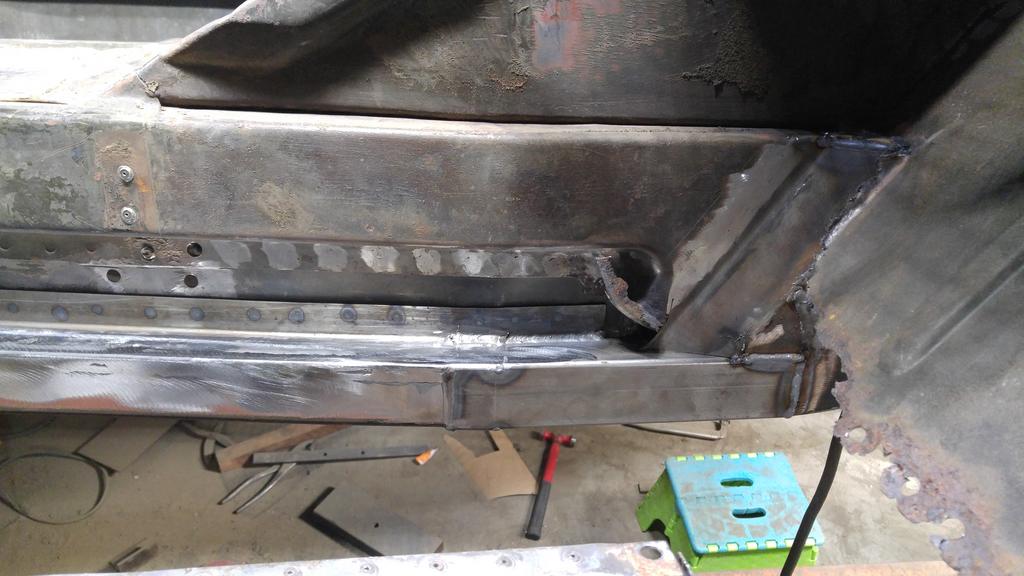

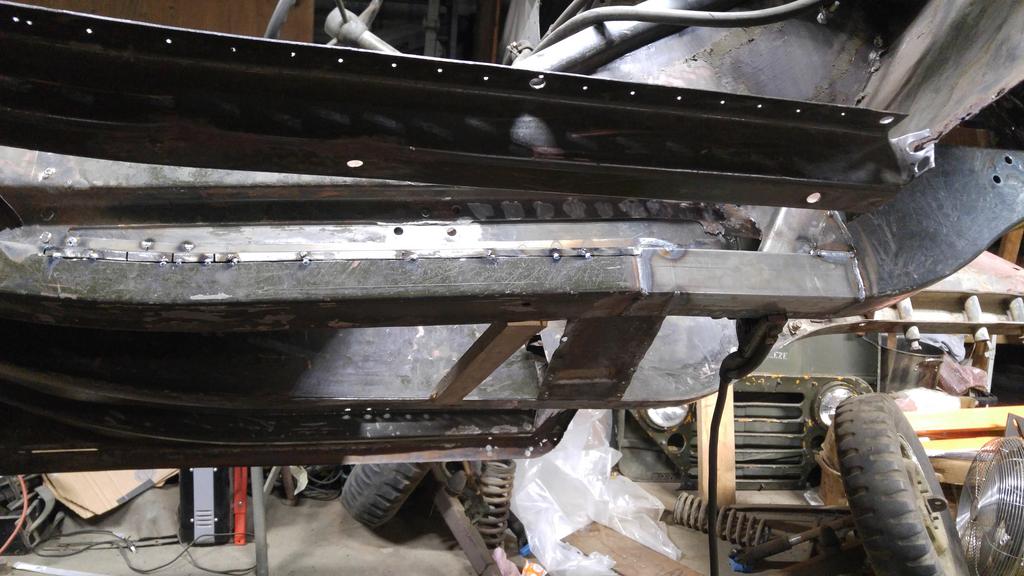

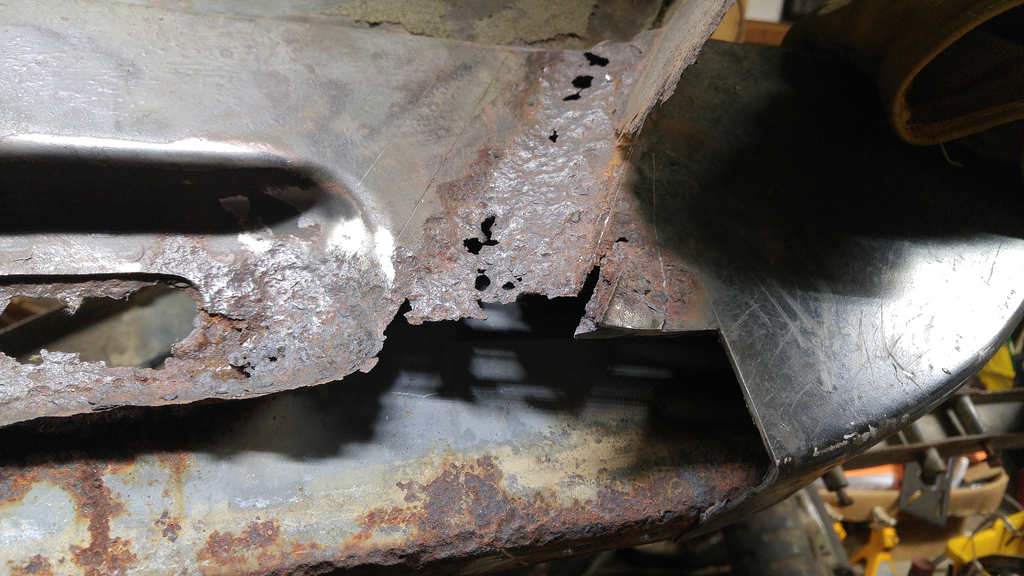

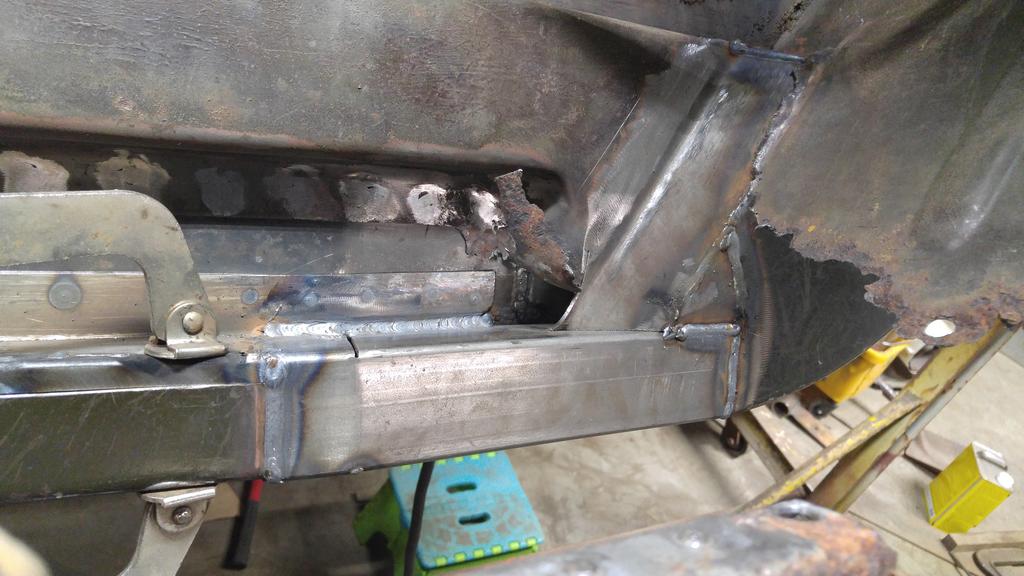

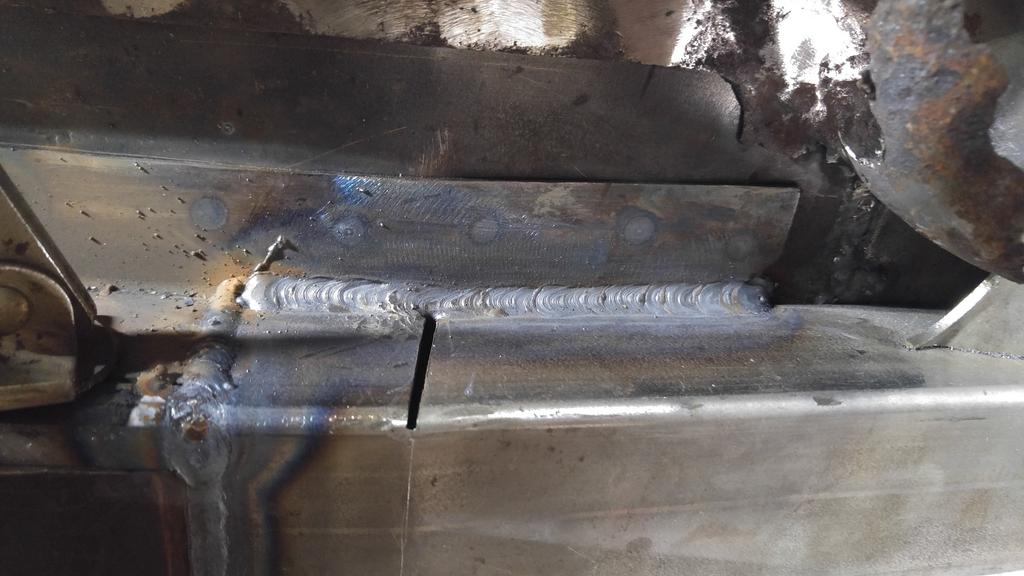

I am getting all of the pitted and rust hole areas fixed by cutting them out and replacing them with new metal. I had to fix a portion of the passengers side frame rail to get ready for the passengers side floor pan to go in. The top portion had rusted and pitted from years of standing water in the floorboards. The bottoms of the frame rails were solid everywhere except for the location where the transmission crossmember held water too.









































lpcoating
Colonel
Colonel
Posts: 1400
Joined: February 19th, 2013, 11:38 pm
Location: Mansfield, PA
Contact:

Re: Two 1962 Ford M151's

Post by lpcoating » June 3rd, 2019, 7:18 am

Looks good! For those that do not know, the battery floor is not ours and we do not make at this time.

Guy
M151 Body Panels - http://www.m151bodypanels.com/

'68 A1 - Under full resto

m75
Master Sergeant
Master Sergeant
Posts: 350
Joined: April 12th, 2015, 2:01 pm
Location: Antelope Valley, CA

Re: Two 1962 Ford M151's

Post by m75 » June 4th, 2019, 11:45 am

I got my battery floor from Fil Bonica, although I don't know what source he used.
Jim Peterson
SGM, 31B Retired 2015
1961 M151 -Sold
1974 M151A2, Working It!

lpcoating
Colonel
Colonel
Posts: 1400
Joined: February 19th, 2013, 11:38 pm
Location: Mansfield, PA
Contact:

Re: Two 1962 Ford M151's

Post by lpcoating » June 4th, 2019, 4:06 pm

They are the ones from MD Juan. Last I knew, Army Jeep Parts has them.

Guy
M151 Body Panels - http://www.m151bodypanels.com/

'68 A1 - Under full resto

M37
Corporal
Corporal
Posts: 45
Joined: September 5th, 2018, 11:41 pm

Re: Two 1962 Ford M151's

Post by M37 » June 8th, 2019, 3:06 pm

Sorry for any confusion about where the battery floor comes from. It was sourced from Army Jeep Parts, and it is made by MD Juan.

Sorry Guy, I never thought when I took the picture that it would cause people to be excited that you were making battery floors. I know we would all rather buy all our m151 parts from you!

Folks I can't tell you how happy I am with Guy's products! The fit and finish details are awesome. His design also gives you extra material to allow you the best fit on the floor pans. My straight M151 is slowly becoming solid again.
